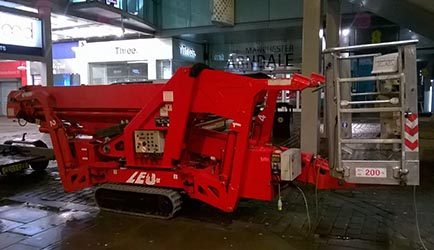

Tracked Spider Platforms
Tracked spiders can work internally and externally and are the ideal solution for narrow access and on fragile or lower pressure surfaces, all our spiders platforms have non-marking tracks and are supplied with outrigger pads and have two person baskets.
Teupen Leo 15GT
Working height - 14.9m
Lateral outreach (max) - 6.40m
Max load in cage - 200kg
Travelling height - 1.995mm
Travelling width - 780mm
Outrigger's set - 2.90m x 3.90m
Net Weight - 1952kg
Leo15GT Specification
CTE CS 170
Working height - 17.0m
Lateral outreach (max) - 7.50m
Max load in cage - 200kg
Travelling height - 2050mm
Travelling width - 780mm
Outrigger's set - 2.83m x 2.86m
Net Weight - 2000kg
CTE CS170 Specification
Teupen Leo23GT
Working height - 23m
Lateral outreach (max) - 11.20m
Max load in cage - 200kg
Travelling height - 980mm
Travelling width - 980mm
Outrigger's set - 4.10m x 4.30m
Outrigger Narrow - 0.00 x 2.30m
Net Weight - 1952kg
Leo23GT Specification
Teupen Leo30T
Working height - 30m
Lateral outreach - 15.7/14.7m
Max load in cage - 80/200kg
Travelling height - 1980mm
Travelling width - 1580mm
Outrigger's set - 4.89m x 4.34m
Outrigger Narrow - 6.22m x 2.58m
Net Weight - 4350kg
Teupen Leo30T Specification
